Columbus Art Museum

Project completed for 2nd year design studio competition

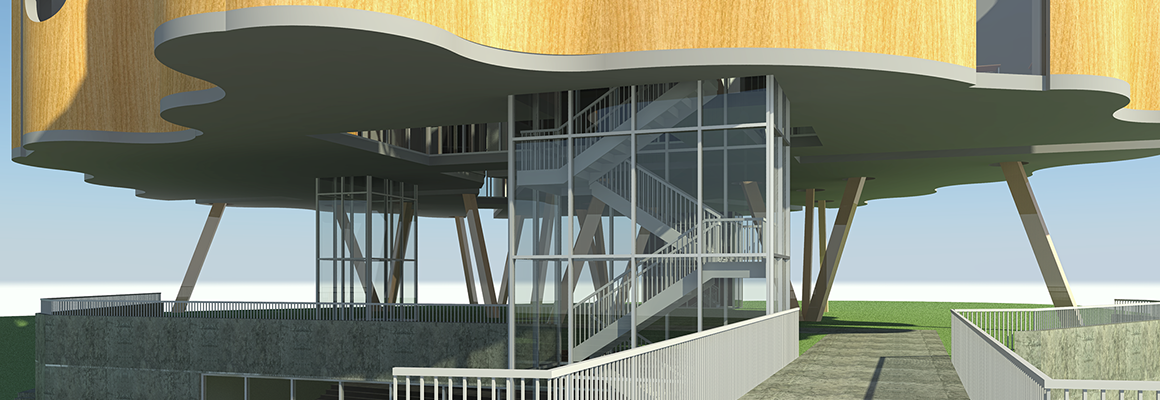

Front Entrance

Indiana

Bartholomew County

Columbus

800 Lindsey Street

          This art museum was designed with three levels in mind. The Lower Level is poised as the public interior floor with a cafe, shop, and an event space. It is the entrance to the Upper Floor which is more private since it is only accessible to patrons paying to see the museum. Above the Lower Level is the exterior Ground Floor Level which is an outdoor park-like area for use as an exterior event space or a place to relax and have a picnic.



          The overall design language of the Lower Level is more utilitarian representing the essential functions it provides while the Upper Level has a curvilinear design language differentiating it from the other two levels as the museum level and making it an art piece itself in the city of Columbus.

Site Context Map

1

9

2

10

11

12

13

14

3

5

6

7

8

4

1. Mechanical

2. Offices

3. Cafe

4. Store

5. Receiving and Storage

6. Lobby

7. Multifunction Event Space

8. Entrance Plaza

9. Small Gallery

10. Medium Gallery

11. Large Gallery

12. Classroom

13. Storage and Exhibit Prep

14. Workshop

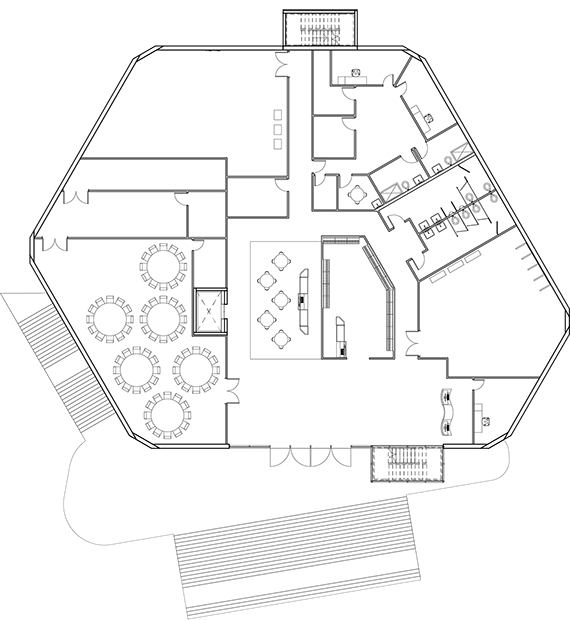

First Floor Plan

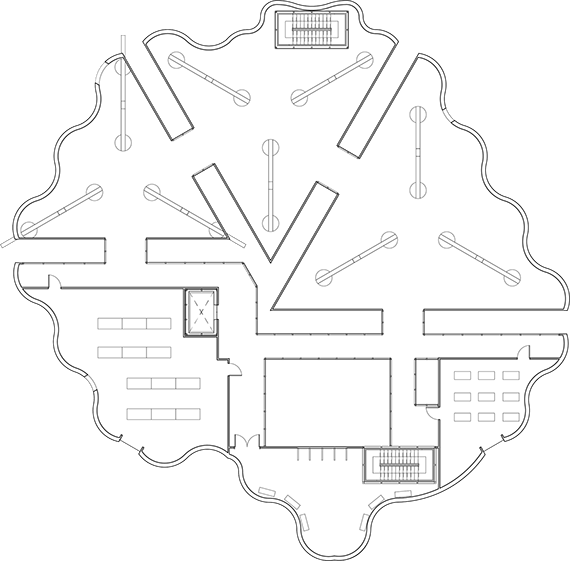

Second Floor Plan

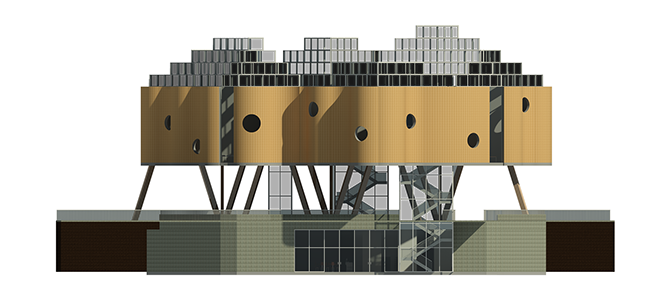

South Elevation

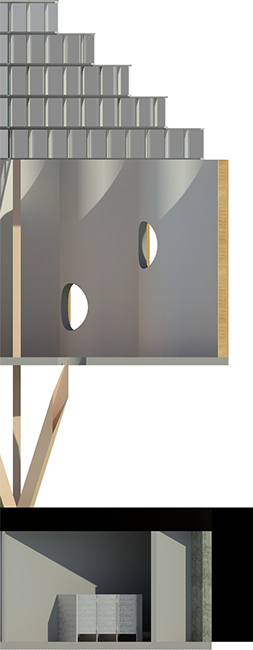

Structure Connection Detail

Structure

1. Low Emissivity Glass

2. Wood Siding

3. 2x6 Stud Wall

4. 5/8" Gypsum Board

5. 3/8" Wood Flooring on TJI

6. 12" Concrete Wall

7. 4" Concrete Slab with Wood Flooring

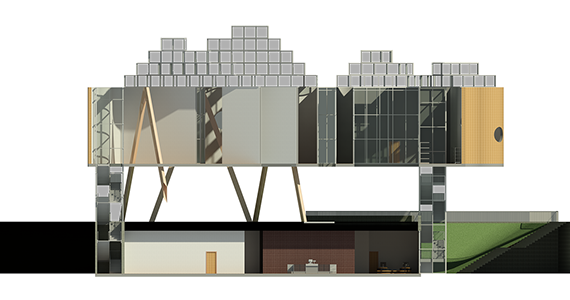

North-South Section

South Elevation

Circulation Diagram

Interior Perspective

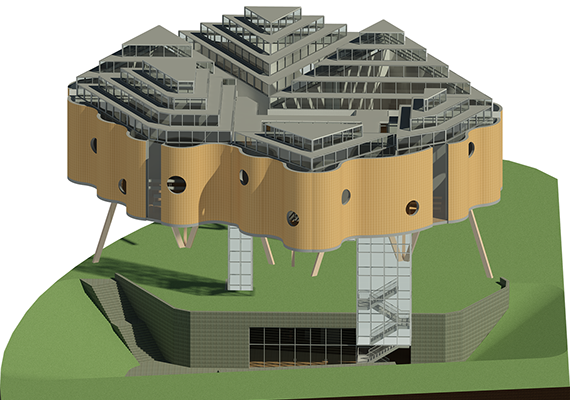

Museum Overall Rendering
